Mini Power Pack

Supplies pressurised oil for hydraulic actuation systems

The Hydraulic Power Unit (HPU) provides pressurised oil to the hydraulic actuation system. A redundant pump system charges the bladder accumulator(s) automatically at a high pressure to utilize the ability of the actuators to store energy. A pressure reducing valve system provides the system with a constant stable system pressure. To ensure the oil cleanliness, supervised filters are installed on the pump and return side. Filtration takes place whenever the pump(s) are running. The HPU is provided with analogue transmitters for oil tank level, temperature and pressure.

• Redundant hydraulic pumps- – Two electrically driven high pressure gear pumps, one operational and one standby. Both may run simultaneously if needed. Each pump is connected to a supervised pressure filter. Changing filter elements can be done during full operation.
• Constant output pressure- – A logical element together with a pilot pressure reducing valve controls the outlet pressure. A pressure relief valve is installed to limit the output system pressure. Output pressure is monitored via a pressure transmitter.
• Surface protection- – As standard, carbon steel parts such as frame, roof and oil tray are painted with corrosion protection for coastal environments with optional coating suitable for seawater areas with high salinity.
• Accumulator system – The HPU can be equipped with 1-3 accumulators, each having a volume of 20-50 litres. The accumulator pressure is monitored via a pressure transmitter, and regulated by the Intelligent Pump Control (IPC). By using a proportional valve to create a smooth transition between charging mode and idling mode, pressure peaks in the system are reduced. A sealed pressure relief valve limits the maximum accumulator pressure. Accumulators are also equipped with burst discs to prevent overpressure in case of fire.
• Intelligent Power Control (IPC) – IPC is mounted and fully installed on the HPU. The IPC controls all the functions of the HPU and communicates with the local Distributed Control System DCS. The IPC is also equipped with a display allowing configuration of minor operating parameters, accessing functions on the HPU and showing its status.

Hydraulic power unit is a self-contained system that generally includes a motor, a fluid reservoir, and a pump. It works to apply the hydraulic pressure needed to drive motors, cylinders and other complementary parts of a given hydraulic system.

The Flowfit 12VDC Double $cting power pack is ideal for use in the following
applications:
Tail Lift – Hoists/Winches – Trailer/Tipper – Compactors
Hand operated lift stacker – Parking Systems/Barriers
Scissor Lift Platform – Security Gates – Aerial Platform – Dock Leveler

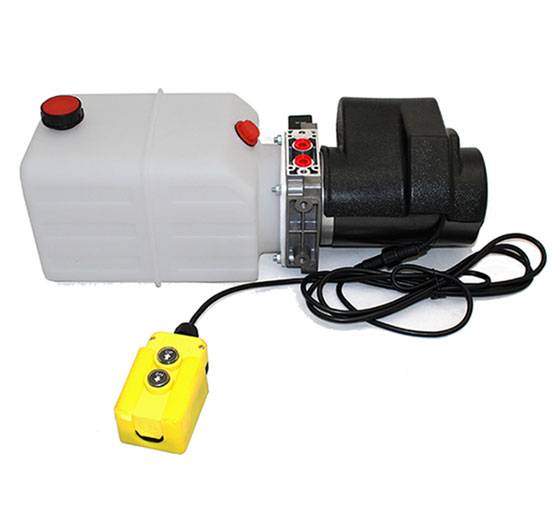

Flowfit 12VDC Double Acting NG6 Solenoid Valve Hydraulic Powerunit
POWERUNIT PACKAGE to operate a double acting cylinder on a variety of
applications, complete with detachable two button pendant.
12VDC powerunit.
2.1cc/rev gear pump.
1.6kw 12VDC electric motor c/w relay and plastic motor cover.
4.5 Litre or 8.0 Litre reservoir c/w drain plug.
3owerpack complete with suction strainer, return oil conveyor and filler breather.
Horizontal mounting.
Max pressure 200 bar.
Relief valve set at 160 bar but adjustable from 40-200 bar as standard.
Max flow 5 l/min.
Relief valve and P line check.
Port size 3/8” BSP.
2 Button detachable pendant on a 4 metre lead.
Suitable for all double acting applications.
WITH MANY ADDED FEATURES SUCH AS DETACHABLE PENDANTS
FOR ADDED SECURITY, REMOVEABLE PLASTIC MOTOR COVER AND
A VARIATION ON WHICH RELIEF VALVE SPRING IS FITTED YOUR ARE
GETTING AN EXCEPTIONALLY GOOD QUALITY PRODUCT AT A VERY
COMPETITIVE PRICE.
*Please note. Our DC power units can pull 200 amps at full load, if fusing is a requirement a 210 amp fuse should be used. A minimum 25mm2 cable at a max 5 metres In length should be used and negative cable should be in one. continuous length from the battery terminating at the power unit.
