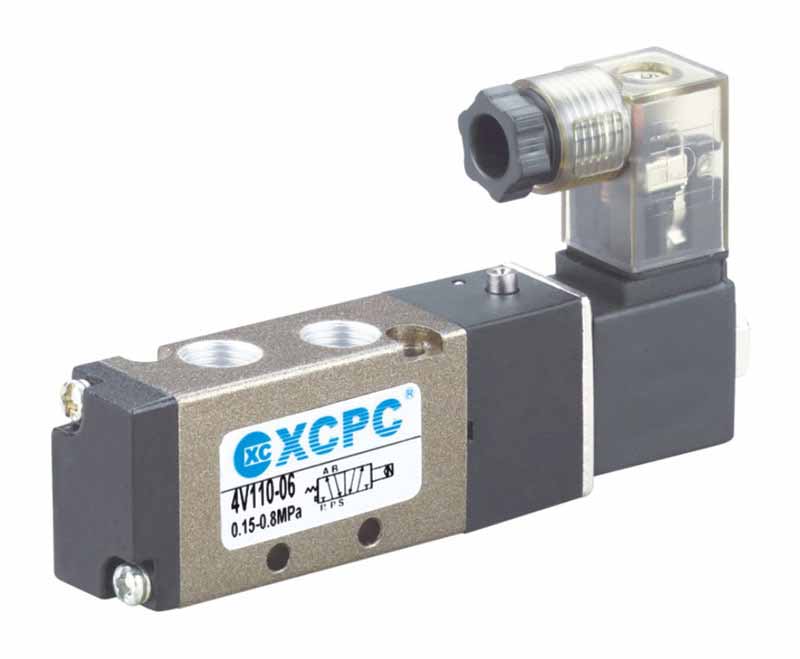

Directional Valves

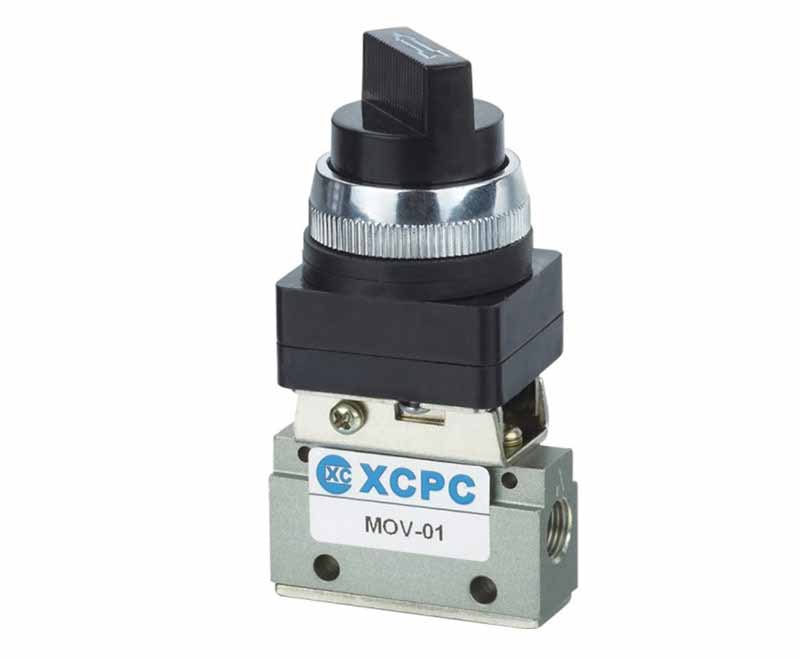

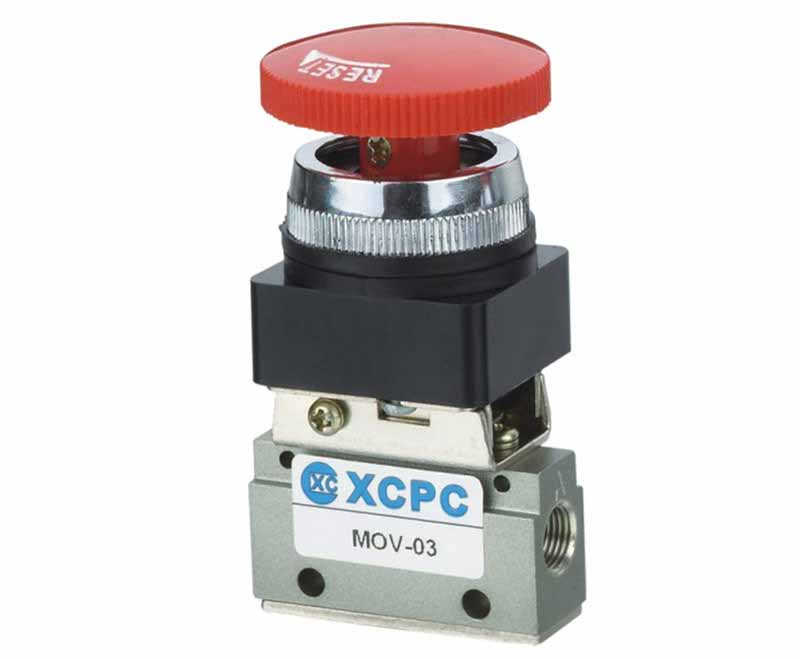

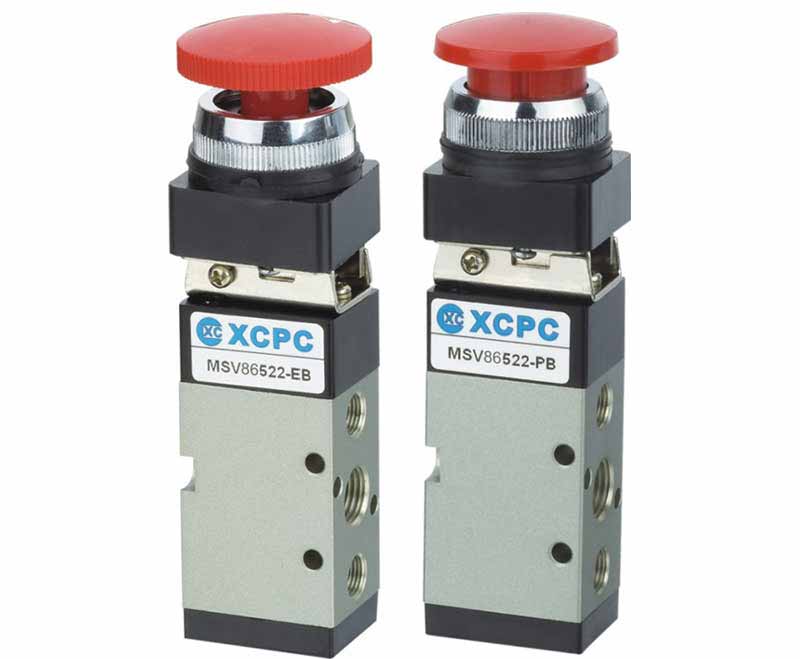

MOV SERIES MECHANICAL VALVE

 Working Medium            Air
 Position and Way No.        Two-position Two-way
 Port Size                G1/8″ ~ G1/2″
 Working-pressure Range        0~0.8MPa
 Operating Temperature        0~70℃

Pneumatic valve with G1/4 port, mechanically actuated

Roller lever valve
Stem actuated valve

TSV/4H SERIES HAND-PULL VALVE

Working Medium 40 Micron Filtered Air
Motion Pattern Direct Drive Type
Effective Sectional Area 18mm2(CV=1.00)
Port Size G1/4
Working-pressure Range 0~1.0MPa
Operating Temperature Range 0~60℃

Hand Lever Valve Manually
Operating Pressure: 0…10 bar
Material: Aluminum and Plastic

4R/3R SERIES HAND-DRAW VALVE

Working Medium Compresses Air
Working-pressure Range 0~1.0MPa
Operating Temperature Range -5~60℃
Operating Method Direct Action Type
Lubrication Not Required

Manually actuated valve, metric VHEF
Directly controlled, manually actuated valve. Available as a hand lever, selector switch, or finger lever.
Durable thanks to tried-and-tested piston slide and disc seat valve technology
Robust metal housing
Attractive price
Ergonomic and safe operation
Minimal actuating forces
Modern design
Reverse operation possible

4F/FV Series Foot Valve

F-5-1/4-B
Working Medium 40 Micron Filtered Air
Motion Patten Direct Drive Type
Working-pressure Range 0.15~0.9MPa
Operating Temperature Range 0~60℃

Valve function 5/2-way, monostable
Type of actuation Manual
Standard nominal flow rate 550 l/min
pneumatic working port G1/4
Operating pressure -0.95 bar … 10 bar
Design Poppet seat
Type of reset Mechanical spring
Nominal size 7 mm
Mounting position optional
Type of piloting Direct
Flow direction Non-reversible
Ambient temperature -10 °C … 60 °C
Actuating force 78 N
Product weight 705 g
Type of mounting With through-hole
Pneumatic connection, port 1, 2, 3, 4, 5 G1/4
Material seals NBR
Material housing Die-cast aluminium

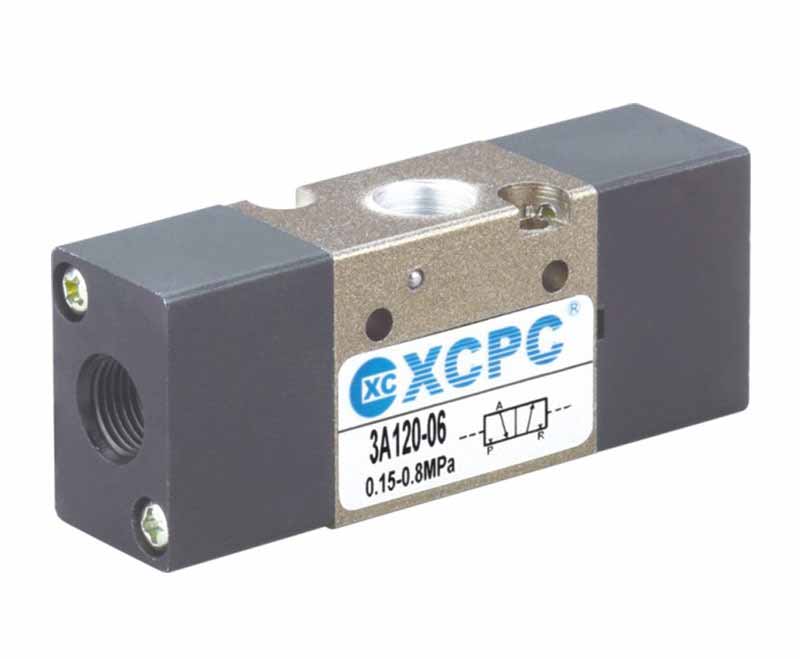

4A110-06

JH Pneumatic double pilot valve
Valve function    5/2 bistable
Actuation type    pneumatic
Build.width [mm]    30,5
Normal nominal flow [l/min]    1.100
Operating pressure [bar]    0 to 8
Construction set up    Plate seat
Nominal width [mm]    7
Exhaust function    Can be throttled
Sealing principle    Soft
installation position    arbitrary
Control type    Direct
Control air supply    external
Flow direction    Not reversible
Überdeckung    negative Überdeckung
Control pressure [bar]    1.2 to 10
Operating medium    Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium    Oiled operation possible (required in further operations)
Corrosion resistant class KBK    1 – low corrosion stress
Bearing temperature [°C]    -20 to 60
Medium temperature [°C]    -10 to 60
control medium    Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [°C]    -10 to 60
Product weight [g]    330
Fastening type    With throughway bores
Selectively:
on terminal strip
Control air 12 connection    G1/8
Pneumatic connection 1    G1/4
Material information    RoHs compliant
Seals material    NBR
TPE-U(PU)
Housing material    Aluminium die casting
Pitch dimension [mm]    32
Max. switching frequency [Hz]    12
Shifting time um [ms]    7

4F/FV Series Foot Valve with cover and lock

F-5-1/4-B
Working Medium 40 Micron Filtered Air
Motion Patten Direct Drive Type
Working-pressure Range 0.15~0.9MPa
Operating Temperature Range 0~60℃

RE SERIES FLOW CONTROL VALVE

Working Medium Air
Working-pressure Range 0~0.95MPa
Operating Temperature Range 0~60℃

Valve function Flow control non-return function
Adjusting element Knurled screw
Type of mounting Optionally: Front panel mounting With through-hole
Standard nominal flow rate in flow control direction 1,010 l/min
Standard nominal flow rate in non-return direction 1,150 l/min
Operating pressure 0.1 bar … 10 bar
Ambient temperature -20 °C … 75 °C
Housing material Die-cast zinc
Mounting position Any
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Temperature of medium -20 °C … 75 °C
Note on materials RoHS-compliant
Material of adjusting screw Brass

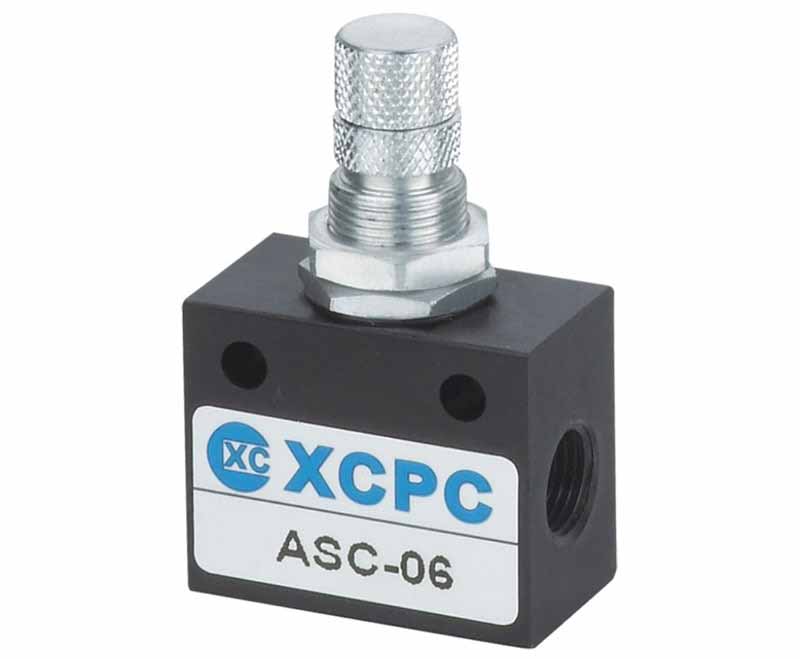

ASC SERIES ACCURATE TYPE FLOW CONTROL VALVE

KA SERIES CHECK VALVE – Non return valve

Operation Medium Compress Air
Working-Pressure 0.05~1.2MPa
Entironment Temperature -10~+55℃
Medium Temperature 0~+55℃
Startup Ability ≤0.03MPa
Respond Time (Sec) 0.03
Life(Ten thousand Times) ≥150

Valve function Non-return function
Pneumatic connection 1 M5
Type of mounting Line installation
Standard nominal flow rate 115 l/min
Operating pressure 0.04 MPa … 0.8 MPa
Operating pressure 0.4 bar … 8 bar
Ambient temperature -10 °C … 60 °C
Housing material Brass
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity VDMA24364-B2-L
Temperature of medium -10 °C … 60 °C
Note on materials RoHS-compliant
Seals material NBR

KLA SERIES CHECK VALVE – #Needle valve

Working Medium Air
Working-pressure Range 0.5~0.95 Kgf/cm2
Ensured Pressure Resistance 15.0 Kgf/cm2
Operating Temperature Range -5~60
Body of Material AluminumAlloy Lyl2

Flow control valve, throttling at both ends
In-line throttle
Connections: push-in connector at both ends
Connections: in-line, Y-shape
Polymer design

Valve function Flow control function
Pneumatic connection 1 G1/8
Adjusting element Knurled screw
Type of mounting Optionally:Front panel mounting With through-hole
Standard nominal flow rate in flow control direction 210 l/min
Operating pressure 0 bar … 10 bar
Ambient temperature -20 °C … 60 °C
Housing material Wrought aluminum alloy
Explosion prevention and protection The information in the certificate must be observed!
Nominal width 3 mm
Mounting position Any
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Temperature of medium -20 °C … 60 °C
Note on materials RoHS-compliant
Seals material NBR
Material of adjusting screw High-alloy steel
Nut material Wrought aluminum alloy
Sleeve material POM

Quick exhaust valve SE, SEU
Screw-in exhaust air control with balanced noise emission.
Valve function: quick exhaust
Stop valve, piloted
Screw-in
With or without muffler

Timerate(Ten Thousand Times) ≤200
Working Pressure Range 0.12~1.0MPa
Valve function Quick exhaust
Selection of additional function With silencer
Pneumatic connection 1 G1/4~G1”
Type of mounting Screw-in
Standard nominal flow rate exhaust air 6->5 bar 2,280 l/min
Standard flow rate exhaust 6-> 0 bar 4,680 l/min
Standard nominal flow rate pressurization 6->5 bar 2,880 l/min
Operating pressure 0.2 bar … 10 bar
Ambient temperature -20 °C … 75 °C
Housing material Die-cast aluminum
Nominal width 11 mm
Mounting position Any
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Temperature of medium -20 °C … 75 °C
Noise level 83 dB(A)
Product weight 160 g
Seals material NBR

CV SERIES VACUUM VALVE

Vacuum generator #VAD , #VAK
Sturdy aluminum housing for direct connection of a suction cup

Working Medium Air
Working Pressure Range 0~1.0MPa
Shortest Excitation Time 0.05 Second
Operating Temperature Range ≤10cm³/min

Nominal width of Laval nozzle 1 mm
Mounting position Any
Ejector characteristics High vacuum
Structural design T-shape
Operating pressure 1.5 bar … 10 bar
Max. vacuum 80 %
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Temperature of medium -20 °C … 80 °C
Ambient temperature -20 °C … 80 °C
Type of mounting With through-hole
Pneumatic all connection G1/4
Note on materials Free of copper and PTFE
Housing material Die-cast aluminum

XKP SERIES QUICK EXHAUST VALVE

AQ1500-M5 quick exhaust, AQ QUICK EXHAUST

Working Medium Compress Air
Operating Temperature Range -5~+60℃
Working-pressure 0.05~1.2MPa

The AQ series quick exhaust valve offers high flow capacity in a compact and lightweight body. The series is available in lip, diaphragm and an inline body shape with built-in one-touch fittings. The AQ is available in a variety of port sizes.

Available in lip or diaphragm type
High flow capacity
Compact and light weight
Low differential pressure

HSV SERIES SLIDING VALVE
look like Hand slide valve VBOH
Working Medium Filtered Air
Working-pressure 0~1.0MPa
Ambient Temperature Range 5~60℃

Made of aluminum,high quality coupler
Used for connecting and controlling pneumatic elements.
Can be used as an air source switch.

Specification Material: Aluminum Color: Blue and Silver Size: 58 x 27MM/2.28″” x 1.06″”(L x Dia) Working medium: Air Port Diameter: 1/4″” Working pressure: 0.15-0.8 MPa Working temperature: -5-60 °C : 49g Features: Used for connecting and controlling pneumatic elements, also can be used as an air source switch. With Male Thread and Female thread, easy to install. Made of Aluminum,high quality and durable Flow Control Manual Slide Valve Package include: 1 x Flow Control Manual Slide Valve

Elegant stop valve with underlap, for high flow rate and operating pressure.
Used as a shut-off function for pressurizing and exhausting compressed air systems, e.g. upstream of air preparation combination units, for air blow guns, and also for exhausting pneumatic cylinders
Non-overlapping, so no pressure losses when switching
Low installation costs
